FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck

Name: FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck
Brand: FOTON
Price: 1 USD

China FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck wholesale

Brand Name : FOTON

Model Number : BJ1065VDJD6-F1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30000 Units Per Year

Delivery Time : 25 Work Day

Packaging Details : Naked, Frame, Container

Wheel base（mm） : 3360

Wheel track (front/rear)mm : 1590/1485

Max. speed（km/h） : 100

Fuel form : Diesel

Displacement（L） : 2.771

Rated Powe[kw/HP : 8

Contact Now

FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck

Performance Characteristics:

1.Comfortable ride:Driver-centric design concept

2.Strong and environmentally friendly

3.Cabin material, durable material variety (1) iron corrugated, (2) color steel plate, (3) aluminum plate, (4) aluminum alloy corrugated, (5) foam insulation

4.Cabin shape, multi-side door opening Wide range of applications

Parameter:

Vehicle model		BJ1065VDJD6-F1
Cabin		Left hand-single row-1880
Whole vehicle main dimensions	Dimensions (L×W×H)mm	5965×1960×2225 5995×2075×2315
	Driving type	4×2
	Wheel base(mm)	3360
	Wheel track (front/rear)mm	1590/1485
Weight data	Chassis weight (kg)	2200 /2600
	Persons in cab (persons)	3
	Gross vehicle weight(kg)	6000
Whole vehicle main performance	Max. speed(km/h)	100
Engine	Model	BJ493ZLQV1
	Fuel form	Diesel
	Emission	Euro III
	Displacement(L)	2.771
	Rated Powe[kw/HP]	76
	Max torque [N•m(r/min)]	225
Gearbox	Model	5G32
Clutch	Type	φ260×φ160mm φ260×φ160mm diaphragm spring clutch
Front axle	Type	2.4T
Rear axle	Type/Main reducetion ratio	4.5T/5.375
Suspension	Front suspension/Leaf spring number	Non-independent suspension longitudinal leaf spring / 3
Suspension	Rear suspension/Leaf spring number	Non-independent suspension longitudinal leaf spring /5+2
Steering gear	Model	Recirculating ball type, φ80
Braking system	Service brake	Drum brake
	Parking brake	Cut-off brakes
	Auxiliary brake	Exhaust brake
Wheels and tyre size		7.00R16,(6+1)
Fuel tank (L)		120L

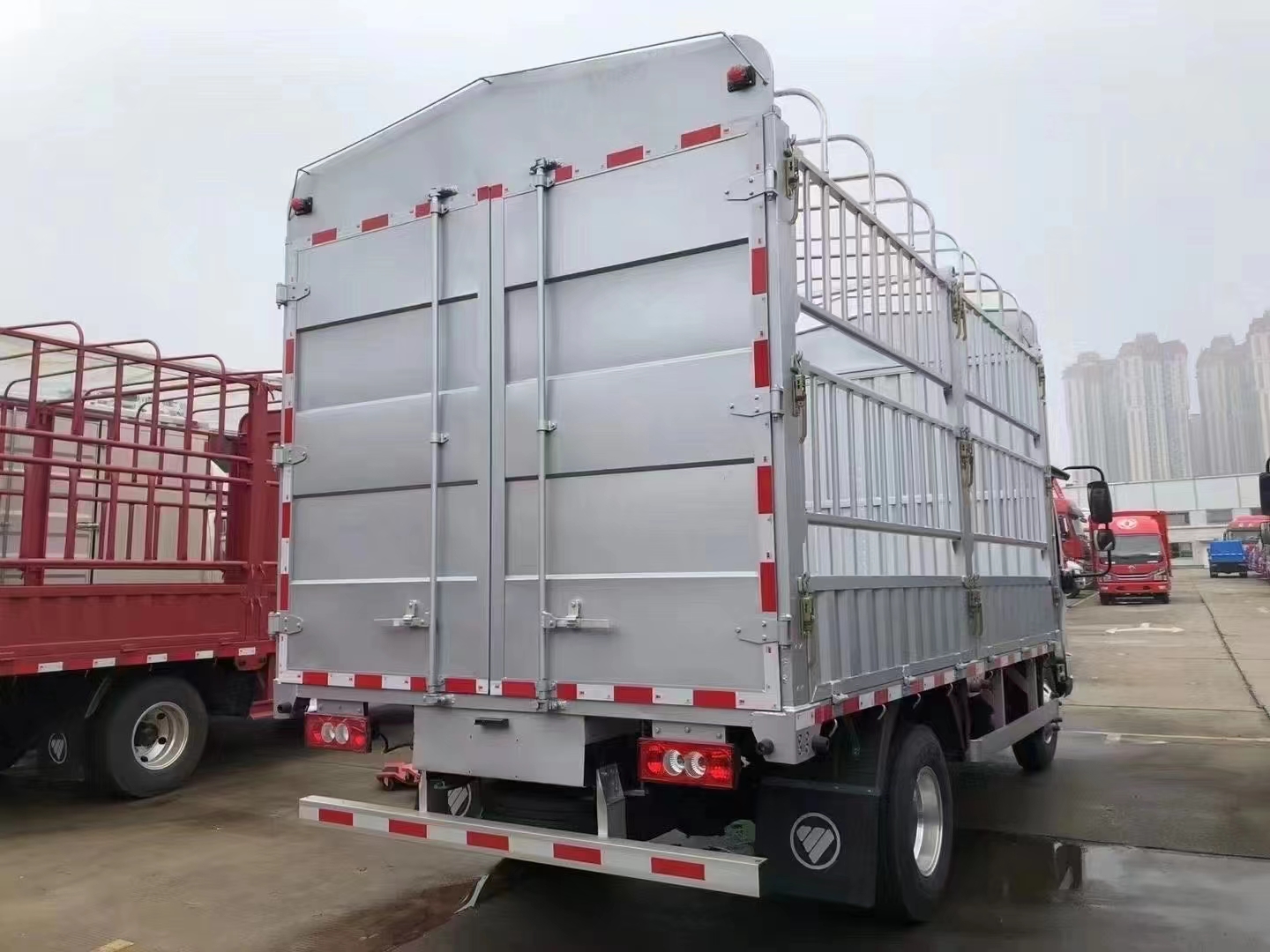

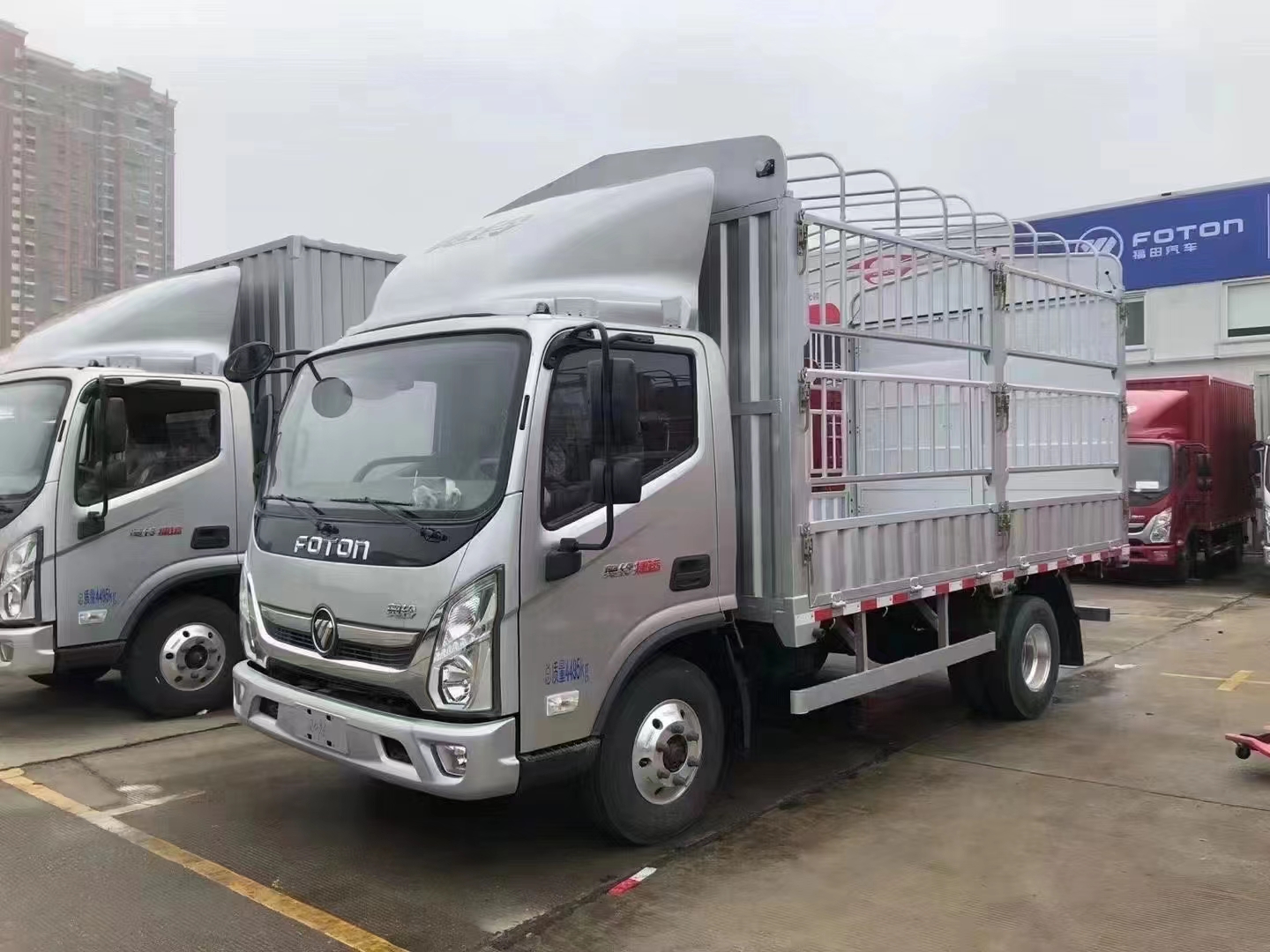

Product Show:

FOTON AUMERK HOWO SHACMAN 4X2 Light Lorry Box Van Stake Flatbed Cargo Truck
