XCMG Mining Dump Truck 65 Ton Mechanical Driver Dump Truck XDM70

Name: XCMG Mining Dump Truck 65 Ton Mechanical Driver Dump Truck XDM70
Brand: XCMG
Price: 1 USD

China XCMG Mining Dump Truck 65 Ton Mechanical Driver Dump Truck XDM70 wholesale

Brand Name : XCMG

Model Number : XDM70

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs/month

Delivery Time : Full Payment 15-30 Work Days

Packaging Details : by Sea/by Bulk/by Frame/Container

Rated Payload : 65000kg

Empty Weight : 28000kg

Gross Vehicle Weight : 93000kg

Max. Speed : 55km/h

Engine : YC6K480-GT30

Tire : 16.00R25

Contact Now

XCMG Mining Dump Truck 65ton Mechanical Driver Dump Truck XDM70 Mine Dump Truck

Product Features of Mining Tipper Truck

1. High performance engine

Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.

2. Structurally enhanced frame

* Welded box sectional steel structure.

* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.

* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.

* The computer-aid design and finite element analysis ensure the frame have enough intensity.

Product Parameters

Item		Unit	XDM70
Performance parameters	Rated Payload	kg	65000
	Empty Weight	kg	28000
	Gross Vehicle Weight	kg	93000
	Drive Style		6x4
	Max. Speed	km/h	55
	Max. Gradeability	%	38
	Min. Turning Diameter	m	22
	Overall dimension	mm	1029058805085
Engine	Model		YC6K480-GT30
	Rated Power/Speed	kW/rpm	353/1900
	Max. Torque/Speed	Nm/rpm	2200/1100-1500
Tires	Standard Tire		16.00R25

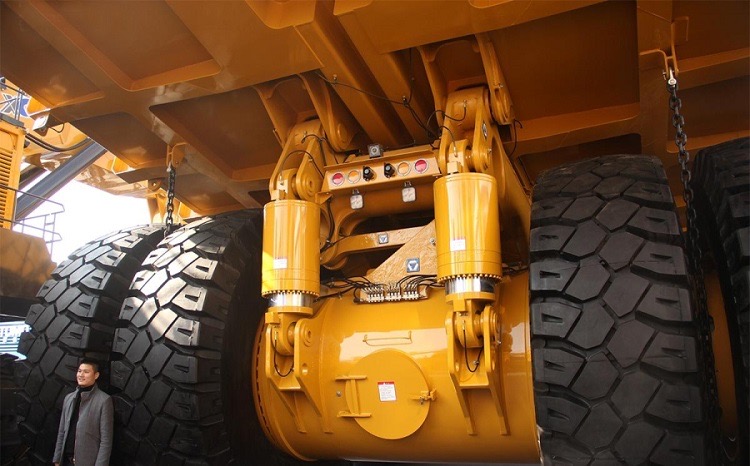

Photo Show

XCMG Mining Dump Truck 65 Ton Mechanical Driver Dump Truck XDM70
